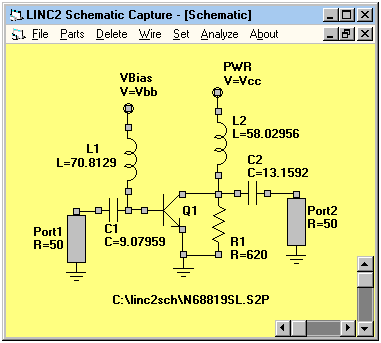

Above: Original schematic showing component values from step 8 (initial design).



First, edit the schematic using the nearest standard component values.

Then, add 50 Ohm microstrip transmission lines (T1 and T2) from circuit to input/output connectors.

Finally, add a small capacitance across each inductor to model parasitics.

Click "Analyze" to start the simulation of the final circuit design (circuit as built).
