LINC2 FILTER – From Traditional Single-ended Filter Design to New Differential (balanced) Filters!

Click here to order (then click the credit card icon)à Order LINC2 Pro

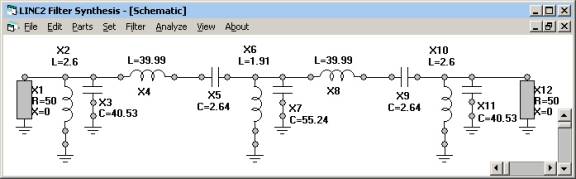

Shown below is a classical 5th order Chebyshev bandpass filter designed using the LINC2 single-ended design option.

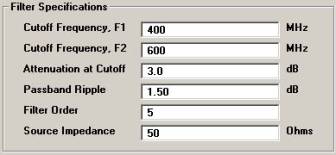

Enter the filter design specifications.

Click here to see LINC2 balanced filter designè LINC2 Differential Filter

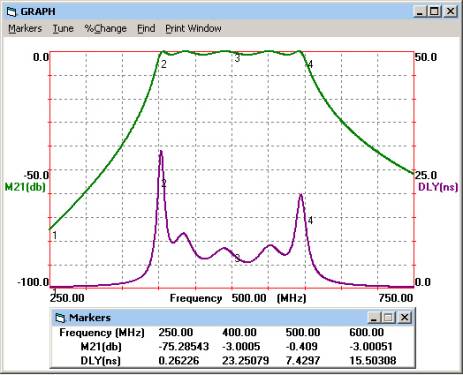

The bandpass frequency response is plotted above for log magnitude of S21 (M21 in dB on left axis).  The group delay (DLY in nanoseconds) is shown plotted against the right axis.
