LINC2 FILTER – From Traditional Single-ended Filter Design to New Differential (balanced) Filters!

Click here to order (then click the credit card icon)à Order LINC2 Pro

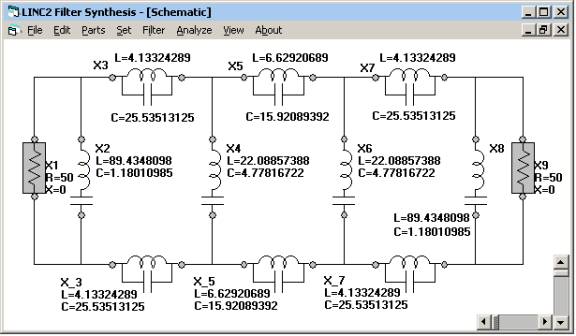

Shown below is a 7th order Butterworth bandstop filter designed using the LINC2 balanced design option.

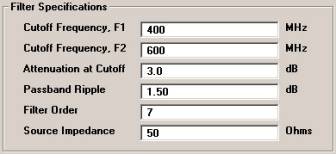

Enter the filter design specifications.

Click here to see LINC2 single-ended filter designè LINC2 Single-ended Filter

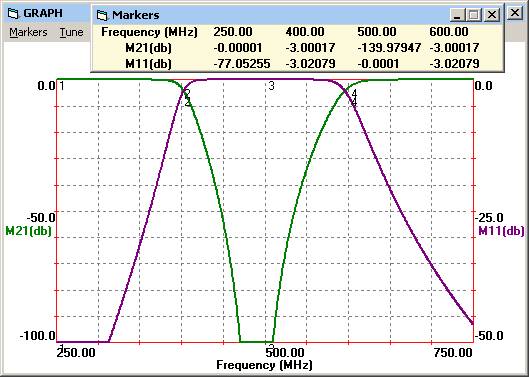

The bandstop frequency response (log magnitude of S21 = M21 in dB) and return loss (log magnitude of S11 = M11 in dB) are shown plotted against the left and right axes respectively.
